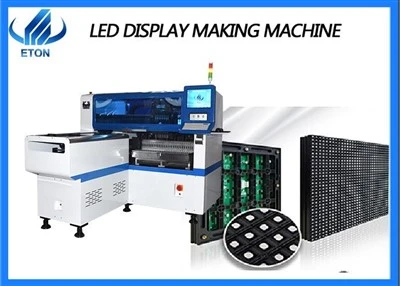

F7S Rau Teeb Ntau Lawm 180000CPH Smt Tshuab

SMT Mounting Tshuab: F7S rau Teeb Ntau Lawm 180000CPH tuaj tos thiab tso tshuab



Cov tswv yim pom zoo rau lub teeb tsim (F7S)

Haum rau kev tsim khoom ntawm {{0}}.6, 0.9, 1.2 meters ntawm lub teeb, nrog lub peev xwm ntawm 15k-18k

Lub tshuab luam ntawv: siv cov hlau mesh kom xau solder muab tshuaj txhuam rau hauv cov ntaub qhwv ntawm PCB board

Docking chaw nres tsheb: kis tau tus mob PCB board, nrog tsis muaj nuj nqi

Mounter: raug mount cov khoom mus rau qhov chaw ntawm PCB

Reflow soldering: hla lub PCB board los ntawm reflow soldering rauv, thiaj li hais tias cov khoom thiab PCB boards yuav zoo dua bonded.



Technical parameter

Qauv	HT-F7S
Dimension
Ntev	2700 hli
Dav	2300 hli
Qhov siab	1550 hli
Qhov hnyav tag nrho	1700kg ib
PCB
PCB Ntev Dav	Max: 1200 * 330mm Min: 100 * 100mm
PCB Thickness	0 5-5mm
PCB Clamping	Adjustable siab pneumatic
Mounting hom	Pab pawg xaiv thiab sib cais
Vision System
No. Lub Koob Yees Duab	5 teeb (Digital lub koob yees duab)
	Kev pom kev sib haum xeeb, MARK kho
Rov qab Mounting Precision	± 0.02mm (Repeat precision)
Mounting Qhov siab	Tsawg dua los yog sib npaug li 5 hli
Mounting Ceev	150000-180000 CPH
Cheebtsam	LED 3014/3020/3528/5050 thiab capacitors, resistors, choj rectifiers, thiab lwm yam.
Pub System
No. of Feeders Station	68 pcs ib
No. lub taub hau	34 Pcs
Txoj kev pub mis	Electric feeder nrog ob lub cev muaj zog



SMT ntau lawm kab

Solder paste tshuab luam ntawv: Lub tshuab luam ntawv yog Stencil luam tawm ntawm PCB board los ntawm Stencil ntawm lub tshuab luam ntawv.

Ib leeg conveyor: Tshawb xyuas qhov zoo ntawm kev sib dhos thiab vuam kom cushion cov kab ntau lawm.

Xaiv thiab tso lub tshuab: Mount lub tshuab hluav taws xob ntawm qhov chaw teev tseg ntawm PCB.

Reflow qhov cub: Melt lub solder paste thiab kho nws mus rau lub mounting caij.



Peb Exhibition

Eton tau koom nrog ntau qhov kev nthuav qhia ntawm txawv teb chaws, xws li Is Nrias teb Mumbai Exhibition, India Delhi Exhibition, Egypt Exhibition, Qaib Cov Txwv Exhibition, Pakistan Exhibition, thiab lwm yam thiab trading nrog ntau tshaj 20 lub teb chaws. Tsis tas li ntawd, peb tau koom nrog hauv peb lub rooj sib tham loj hauv tsev, xws li Guangzhou Guangya Exhibition, Shanghai Munich Exhibition, Chongqing LED teeb Exhibition, thiab lwm yam.



FAQ

Q: Koj puas muaj daim ntawv pov thawj khoom pov thawj?

A: Peb cov khoom muaj CCC, CE, SRIA ntawv pov thawj.

Q: Koj cov nqe lus them nqi yog dab tsi?

A: 100% kev them nyiaj ua ntej xa khoom lossis 50% tso nyiaj ua ntej thiab qhov seem ua ntej xa khoom.

Q: Dab tsi yog koj qhov zoo dua lwm lub tuam txhab?

A: Raws li lub ntiaj teb ua lag luam ntawm photoelectric high-speed mounter thiab ib tug pioneer enterprise ntawm SMT Mounter nyob rau hauv Tuam Tshoj, ETON'S cov khoom raug xa tawm mus rau ntau tshaj 20 lub teb chaws thiab cheeb tsam xws li South Kauslim, Is Nrias teb, Nyab Laj, Tunisia, Egypt, Qaib ntxhw, Russia , Brazil thiab Iran. Nws tau tsim nws tus kheej tsim lub ntiaj teb thawj cov khoom siv thev naus laus zis patents thiab cov thev naus laus zis, suav nrog 9 daim ntawv tsim khoom, 12 software copyrights thiab 112 cov tswv yim patents. Nws tau ua tiav cov npe ntawm "Shenzhen high tech enterprise", "Guangdong high tech enterprise", "lub teb chaws high tech enterprise" thiab "Shenzhen nto moo"



Kev kuaj SMT

Nyob rau hauv LED teeb ua tshuab ntau lawm, ntxiv rau kev tshuaj xyuas qhov muag pom, tsis xws luag hauv cov txheej txheem tsim khoom kuj tuaj yeem kuaj pom los ntawm cov tshuab, xws li AOI kho qhov muag tshuaj xyuas.

Lub tshuab cia li luam theej duab PCB los ntawm lub koob yees duab, ntes cov duab, thiab sib piv cov pob qij txha kuaj nrog cov kev tsim nyog hauv cov ntaub ntawv. Thiab tom qab ua cov duab, tshuaj xyuas qhov tsis xws luag ntawm PCB thiab tso saib / kos cov teeb meem los ntawm cov zaub, lossis cia li kos lawv tawm rau kev kho. Nws tau txais kev kub ceev, siab-precision tsis pom kev ua tshuab kom pom tau ntau yam teeb meem kev teeb tsa thiab cov teeb meem ntawm lub rooj tsav xwm PCB. PCB boards muaj xws li los ntawm nplua-pitch high-density boards mus rau tsawg-density loj boards, muab nyob rau hauv-kab soj ntsuam kev daws teeb meem los txhim kho ntau lawm efficiency thiab soldering zoo.



Automated Optical Inspection (AOI) yuav txo qhov tsis xws luag thiab nrhiav thiab tshem tawm qhov yuam kev thaum ntxov ntawm cov txheej txheem sib dhos rau kev tswj cov txheej txheem zoo. Kev tshawb pom ntxov ntawm qhov tsis xws luag yuav zam tsis txhob xa cov PCBs tsis zoo rau cov theem tom ntej sib dhos, thiab yuav txo cov nqi kho thiab zam kom tsis txhob khawb cov laug cam uas tsis kho.
