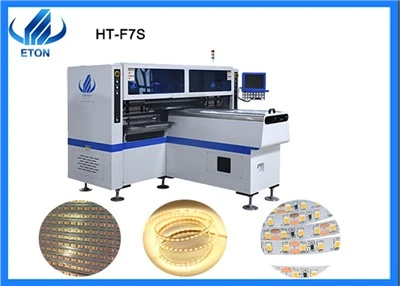

Max 1.2 PCB 180K Peev Xwm SMT Tshuab

High-end sib nqus linear lub cev muaj zog + servo motorApply rau lub 0.6 M, 0.9 M, 1.2 M nruj PCB thiab 0.5 M, 1 M LED saj zawg zog sawb. Ua nrog 4 hom khoom siv nrog lub peev xwm siab. muaj nyob rau hauv lub rooj tsavxwm nrog ib qho kev faib ua feem ntawm LED nti thiab resistor.Ob lub mounting modules, 17 nozzles rau txhua mounting ib feem, ib feem A los yog ib feem B yuav mounted nyias los yog synchronously.Exclusive patent technology: Pab pawg neeg tuaj tos thiab pab pawg rau mount.

Xa kev nug

Muaj nuj nqi

Max 1.2 PCB 180K muaj peev xwm SMT tshuab

SMT Line daws

SMT ntau lawm kab muaj ob lub tswv yim:semi-automatic thiab tag nrho tsis siv neeg kab.Yog tias koj nyuam qhuav pib ua nws, kuv xav kom koj ua cov kab ntau lawm semi-automatic, uastuaj yeem txuag koj cov nqi.

product-700-500

Peb qhov zoo dua

Peb tuaj yeem muab SMT kab kev daws teeb meem rau koj!

Xaiv thiab tso tshuab / reflow qhov cub / stencil tshuab luam ntawv / pcb conveyor / SPI / AOI.etc

1. Lub teeb Hoobkas rau: coj qhov muag teev, DOB, lens, vaj huam sib luag teeb, downlight, txoj kev teeb, raj, 0.5m, 1m strip teeb, thiab lwm yam.

2.Muab cov engineers txawv teb chaws rau kev teeb tsa dawb thiab kev cob qhia dawb.

3.TOP hom ntawm Tuam Tshoj SMT tshuab chaw tsim tshuaj paus, 500 neeg ua hauj lwm rau ETON

Kev piav qhia

IPC9850 Peev Xwm: 150000-180000 CPH

Patent tooj: ZL {{0}}.9/ ZL 2011 2 0334606.0/ ZL 2012 20178869.1/ ZL 2012 2 0415505.{13}} /ZL 2012 20415044.7/ZL 2012 2 0415356.8/ ZL 2012 2 0415061.0

Technical parameter

Qauv	HT-F7S
PCB Thickness	0 5-5mm
PCB Clamping	Adjustable siab pneumatic
Mounting hom	Pab pawg coj thiab pab pawg los txhim kho
Mounting Qhov siab	Tsawg dua los yog sib npaug li 5 hli
Mounting Ceev	150000-180000 CPH
Cheebtsam	LED 3014/3020/3528/5050 thiab capacitors, resistors, choj rectifiers, thiab lwm yam.
Cheebtsam Ceev	0.5 hli
No. of Feeders Station	68 pcs ib
No. ntawm nozzles	34 Pcs
Hwj chim	380AC 50 HZ
Kev siv fais fab	6 kws
Kev ua haujlwm ib puag ncig	23 degree ± 3 degree
Kis ceev	Max Length: 1200 hli
X, Y, Z Axis Tsav txoj kev	High-end magnetic linear motor + servo lub cev muaj zog
Txoj kev pub mis	Electric feeder nrog ob lub cev muaj zog

Kev siv tshuab

Appdaim ntawv qhia: siv rau {{0}}.6M, 0.9M, 1.2M rigid PCB thiab 0.5M, 1M LED hloov tau strip. Thiab kuj haum rau mounting raj, vaj huam sib luag teeb, teeb thiab lwm yam.

PCB lojLoj: 1200 * 330mm; Min: 100 * 100mm

product-643-545

Kev ua lag luam

product-871-369

product-700-500

FAQ

Q. Kuv tuaj yeem saib nyob ib puag ncig koj qhov chaw ua lag luam yog tias kuv nyob hauv nkoj?

A. Yog tias koj muaj tus neeg sawv cev hauv Suav teb peb tuaj yeem teem sijhawm los qhia koj ib puag ncig, tau kawg peb kuj tuaj yeem hu xov tooj rau koj los qhia koj qhov chaw ua lag luam, lossis peb yuav ua qee qhov yeeb yaj kiab rau koj yog tias koj xav tau.

Q. Koj puas tuaj yeem lees txais CIF raws li tus nqi hais?

A. Peb feem ntau lees txais EXW raws li tus nqi hais.
