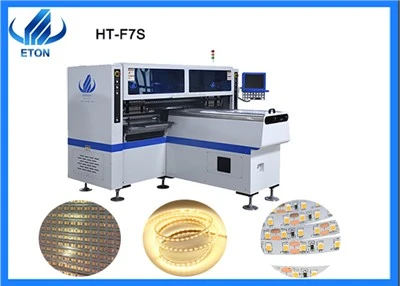

SMT Mounter 68pcs Feeders Rau Teeb Ntau Lawm

SMT Mounter 68pcs Feeders Rau Teeb Ntau Lawm

Technical parameter SMT Production Line Solder paste tshuab luam ntawv: Lub tshuab luam ntawv muab tshuaj yog Stencil luam tawm ntawm PCB board los ntawm Stencil ntawm lub tshuab luam ntawv. Ib leeg conveyor: Tshawb xyuas qhov zoo ntawm kev sib dhos thiab vuam kom cushion cov kab ntau lawm. Pick and place machine: Mount the electronic...

Xa kev nug

Muaj nuj nqi

Technical parameter

Qauv	HT-F7S
Dimension
Ntev	2700 hli
Dav	2300 hli
Qhov siab	1550 hli
Qhov hnyav tag nrho	1700kg ib
PCB
PCB Ntev Dav	Max: 1200 * 330mm Min: 100 * 100mm
PCB Thickness	0 5-5mm
PCB Clamping	Adjustable siab pneumatic
Mounting hom	Pab pawg xaiv thiab sib cais
Vision System
No. Lub Koob Yees Duab	5 teeb (Digital lub koob yees duab)
No. Lub Koob Yees Duab	Kev pom kev sib haum xeeb, MARK kho
Rov qab Mounting Precision	± 0.02mm (Repeat precision)
Mounting Qhov siab	Tsawg dua los yog sib npaug li 5 hli
Mounting Ceev	150000-180000 CPH
Cheebtsam	LED 3014/3020/3528/5050 thiab capacitors, resistors, choj rectifiers, thiab lwm yam.
Pub System
No. of Feeders Station	68 pcs ib
No. lub taub hau	34 Pcs
Txoj kev pub mis	Electric feeder nrog ob lub cev muaj zog

SMT ntau lawm kab

F7S SMT Mounting Machine 68pcs Feeders 34pcs Nozzles For Lamp Production 0

Solder paste tshuab luam ntawv: Lub tshuab luam ntawv yog Stencil luam tawm ntawm PCB board los ntawm Stencil ntawm lub tshuab luam ntawv.

Ib leeg conveyor: Tshawb xyuas qhov zoo ntawm kev sib dhos thiab vuam kom cushion cov kab ntau lawm.

Xaiv thiab tso lub tshuab: Mount lub tshuab hluav taws xob ntawm qhov chaw teev tseg ntawm PCB.

Reflow qhov cub: Melt lub solder paste thiab kho nws mus rau lub mounting caij.

Exhibition

Peb tau tuaj rau ntau lub teb chaws txhua xyoo los koom nrog hauv kev nthuav qhia, kom cov neeg tuaj yeem nkag siab ntxiv txog lub tuam txhab thiab cov khoom lag luam, nthuav dav lub tuam txhab kev cuam tshuam.

Kev nthuav qhia txawv teb chaws suav nrog kev nthuav tawm hauv ntau dua 20 lub tebchaws suav nrog Mumbai, Delhi, Egypt, Qaib ntxhw, thiab Nyab Laj.

Pob

Peb cov txheej txheem ntim khoom yog tswj hwm los ntawm cov kws tshaj lij, thiab cov neeg ua haujlwm lag luam txawv teb chaws tseem yuav thaij duab thiab cov ntaub ntawv ntawm qhov chaw, kom cov neeg siv khoom tuaj yeem paub tseeb.

Peb hom kev thauj mus los feem ntau yog kev thauj mus los hauv hiav txwv lossis huab cua, uas yog txiav txim siab raws li cov neeg siv khoom xav tau.

F7S SMT Mounting Machine 68pcs Feeders 34pcs Nozzles For Lamp Production 1

Client project

Client: Indian neeg siv khoom

Lub nroog: Delhi

Khoom: 100M yob rau yob Flexible strip

Tus neeg siv khoom yog nyob rau hauv lwm yam lag luam ua ntej, thiab tom qab ntawd lawv tau npaj los tsim 100 meters ntawm lub teeb hloov tau yooj yim. Cov

kev lag luam prospect yog optimistic heev.

ETON tau pab tus neeg siv khoom los npaj 100M cov kab ntau lawm, suav nrog cov kab ntau lawm: PCB loader-semi-automatic tshuab luam ntawv-Cov theem tsis-siab ceev tuaj tos thiab qhov chaw tshuab - 24M sib dhos kab- reflow cub - PCB unloader, thiab kuj tau npaj 24M xeem kab, sub-board kab, txheej txheej ntau lawm.

Cov neeg siv khoom tau muab tso rau hauv kev tsim khoom hauv xyoo 2021, thiab qhov xwm txheej tsim tau zoo heev. ETON cov kws tshaj lij tau teeb tsa lub tshuab hauv cov neeg siv khoom lub Hoobkas, npaj cov xaim, kuaj cov khoom, thiab cob qhia cov neeg siv khoom engineers. Tus neeg siv khoom txoj haujlwm tau ua tiav zoo, dhau los ua ib qho ntawm ob peb hauv Is Nrias teb uas tuaj yeem muab 100M yam tsis muaj xov hlau. Lub Hoobkas rau kev tsim tag nrho cov hloov pauv lub teeb strips yog qhov sib tw heev, thiab tam sim no tab tom npaj ntxiv SMT cov kab ntau lawm nrog ETON los nthuav ntau lawm thiab LED cov khoom lag luam.

F7S SMT Mounting Machine 68pcs Feeders 34pcs Nozzles For Lamp Production 2
