Flexible SMT Pick Thiab Muab Tshuab Rau Me Me Batch PCB los ua ke FS10
Flexible SMT Pick and Place Machine for Small Batch PCB Assembly FS10 Tshuab lub ntsiab nta ● Ib leeg gantry, 10 spindles. ● Maximum PCB board: 500 * 450mm, yam tsawg kawg nkaus 50 * 50mm. ● Kev xaiv IC tais, saj zawg zog ntau lawm ● Flexible kab yog achievable los ntawm kev tso kawm modular taub hau thiab ntau ntau lawm ...
Muaj nuj nqi

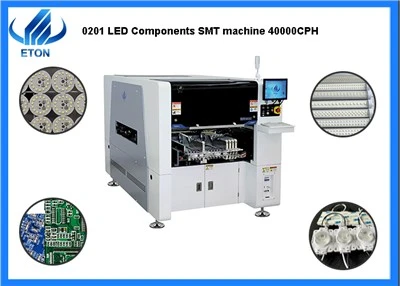

Flexible SMT Pick thiab Chaw Tshuab rau Me Me Batch PCB los ua ke FS10
Tshuab lub ntsiab nta
● Ib leeg gantry, 10 spindles.
● Maximum PCB board: 500 * 450mm, yam tsawg kawg nkaus 50 * 50mm.
● Yeem IC tais, hloov tau ntau lawm
● Cov kab hloov tau yooj yim yog ua tiav los ntawm qhov kev tso kawm ntawm cov taub hau thiab ntau hom ntau lawm.
Tshuab lub ntsiab parameter
|
Qauv |
FS10 |
|
Dimension |
|
|
Ntev |
14 80mm |
|
Dav |
1850 hli |
|
Qhov siab |
1650 hli |
|
Qhov hnyav tag nrho |
1850kg ib |
|
PCB Ntev Dav |
Max: 500 * 450mm (xaiv: 1200mm / 1500mm) Min: 50 * 50mm |
|
Qhov system |
Windows 11 |
|
Software |
R & D ywj siab |
|
Zaub |
LED saib |
|
Ntaus Ntaus |
Keyboard, Mus |
|
Rov ua Precision |
CHIP ± 0.03mm IC / BGA ± 0.025mm Cpk Ntau dua lossis sib npaug 1.33 (4σ) |
|
Mounting Qhov siab |
Txuj<15mm |
|
Mounting Ceev |
40000 CPH (Qhov zoo tshaj plaws ceev) |
|
Cheebtsam ntau yam |
0402 ~ 15 * 15mm cov khoom ntim thiab cov khoom siv IC (Optional fixed identification camera for 0201 ~ 40 * 40mm) |
|
Cheebtsam Chaw |
0.2 hli |
|
Tsis muaj |
52 pcs ib |
|
No. ntawm Spindles |
10 PCS |
|
Txoj kev pub mis |
Hluav taws xob Feeder |
|
Kev tswj hwm ntau lawm MES system interface |
Customized |
Peb qhov zoo dua
Pob ntawv
Hais txog tshuab
Kev pabcuam
FAQ
Q. Kuv puas tuaj yeem mus saib seb koj puas tau muag cov khoom siv rau Is Nrias teb?
A. Yog, peb tau muag peb lub tshuab hauv Is Nrias teb, tab sis qhov tseeb peb tsis tuaj yeem txiav txim siab rau kuv cov neeg siv khoom, tab sis kuv yuav sim hu rau kuv cov neeg siv khoom. Vam tias koj tuaj yeem nkag siab, vim tsis muaj leej twg xav kom lawv cov neeg sib tw tuaj xyuas lawv qhov chaw tsim khoom.
Q. Lub tshuab puas yooj yim rau kev khiav lag luam?
A. Yog, peb lub tshuab yog cov ntse heev thiab yooj yim rau kev khiav lag luam, zoo li lub xov tooj ntse, thiab cov software yog tsim los ntawm peb lub tuam txhab, yog li peb paub yuav ua li cas kom nws txawj ntse thiab ua haujlwm zoo.
