Cov khoom

Tsev Cov khoom LED Xaiv thiab Qhov Chaw Tshuab Paub meej

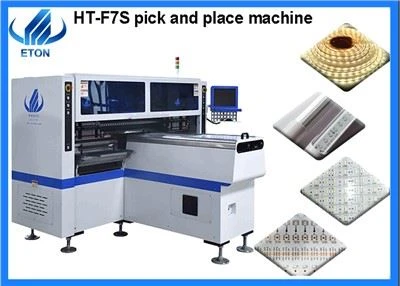

Roll TO Roll Strip Chip Mounting Tshuab

Dual arm magnetic linear high speed mounter rau saj zawg zog sawb (tsis muaj hlau), ua 4 hom ntaub ntawv tib lub sij hawm muaj peev xwm ncav cuag 250000CPH.

Xa kev nug

Muaj nuj nqi

Roll TO Roll strip chip mounting tshuab

Parameter

No. Lub Koob Yees Duab	5 PCS (Lub koob yees duab digital)
Kev pom kev sib haum xeeb, MARK kho
Rov ua dua mounting Precision	± 0.02mm (Repeat precision)
Mounting Qhov siab	Tsawg dua los yog sib npaug li 5 hli
Mounting Ceev	200000-250000CPH
Cheebtsam	LED 3014/3020/3528/5050 thiab capacitors, resistors, choj rectifiers, thiab lwm yam.
Cheebtsam Chaw	0.5 hli
No. of Feeders Station	68 pcs ib
No. lub taub hau	68 pcs ib
Hwj chim	380AC 50 HZ
Kev siv fais fab	6 kws
Kev ua haujlwm ib puag ncig	23 degree ± 3 degree
Conveyor kis tau tus mob	Max Length: 1000 hli
Kev sib kis ceev	>500mm / sec
Kev taw qhia kis	Ib leeg (sab laug → sab xis lossis sab xis → sab laug)
Hom kis tau tus mob	Online tsav
Txoj hauv kev	Kho qhov muag
Kev siv roj	0 4-0.6mpa (4-6kgf/cm2)150N/min
Hluav taws xob tswj	Kev tshawb fawb ywj pheej thiab kev tsim kho los ntawm ETON
Motion Control Card Module 1 teeb	Kev tshawb fawb ywj pheej thiab kev tsim kho los ntawm ETON
X, Y, Z Axis Tsav txoj kev	High-end magnetic linear motor ntxiv rau servo lub cev muaj zog

Tshuab nta

Dual arm magnetic linear high speed mounter rau saj zawg zog sawb (tsis muaj hlau), ua 4 hom ntaub ntawv tib lub sij hawm muaj peev xwm ncav cuag 250000CPH.

Ua nrog 4 hom ntaub ntawv tib lub sijhawm nrog lub peev xwm siab, muaj rau 5m, 50m lossis txhua qhov ntev ntawm cov hlua khi thiab yob rau yob.

T9-01

Cov neeg siv khoom

Peb muaj ntau tus neeg siv khoom loj hauv Is Nrias teb, Qaib ntxhw thiab ntau lub teb chaws.

Hauv Is Nrias teb: SURYA, POLYCAB, FIEM, RK, GK, TECHNO LED, CALCOM, CENTURY LED, AUTOPAL, SKYQUAD, NTL, KONARK, CEPL, FLARE, SLS yog ib qho ntawm peb cov neeg siv khoom loj.

Hauv Qaib Cov Txwv: ACK, KENDAL, KING LED yog ib qho ntawm peb cov neeg siv khoom loj.

Hauv Nyab Laj: RangDong, TAMKIM yog ib qho ntawm peb cov neeg siv khoom loj.

Hauv Egypt: UNISTAR yog ib qho ntawm peb cov neeg siv khoom loj.

Hauv Tunis: SKY INDUSTRIES, FAWANIS yog ib qho ntawm peb cov neeg siv khoom loj

Peb mus rau ntau yam kev nthuav qhia txhua xyoo, suav nrog hauv tsev thiab hauv nkoj. Xws li Guangzhou Guangya exhibition, Shanghai Munich exhibition, Is Nrias teb exhibition, Thaib teb exhibition, Qaib ntxhw exhibition, Mumbai exhibition, Delhi exhibition, Pakistan exhibition, Egypt exhibition thiab hais txog.

FAQ

Q: Koj lub tshuab puas muaj daim ntawv pov thawj zoo?

A: Peb yog cov tuam txhab high-tech nrog CE, SIRA, CCC, ISO tau txais txiaj ntsig raws li "Know-paub hom" thiab ntau daim ntawv pov thawj thev naus laus zis, thiab muaj kev paub nplua nuj (ntau dua 11 xyoos) hauv LED teeb cov kab ntau lawm.

Q: Muaj pes tsawg cov khoom koj lub tshuab ua tau ib hnub?

A: Lub peev xwm ntawm peb lub tshuab yog raws li cov khoom siv tiag tiag, thiab cov khoom siv ntawm koj lub PCB pawg thawj coj saib yog qhov tseem ceeb los txiav txim siab qhov ceev ntawm peb lub tshuab nrog koj cov khoom.

Q; Koj puas tuaj yeem lees txais CIFas tus nqi hais?

A: Peb tsuas yog txais EXW raws li tus nqi hais rau nws yooj yim thiab tus nqi qis rau ob sab.

Q: Kuv puas tuaj yeem mus saib yog tias koj tau muag cov khoom siv rau Is Nrias teb?

A: Yog, peb tau muag peb lub tshuab hauv Is Nrias teb, tab sis qhov tseeb peb tsis tuaj yeem txiav txim siab rau kuv cov neeg siv khoom, tab sis kuv yuav sim tiv tauj kuv cov neeg siv khoom. Vam tias koj tuaj yeem nkag siab, vim tsis muaj leej twg xav kom lawv cov neeg sib tw tuaj xyuas lawv qhov chaw tsim khoom.

Cim npe nrov: yob rau yob strip chip mounting tshuab, Suav teb, lwm tus neeg, manufacturers, hoobkas, nqe, pheej yig, hais
