Cov khoom

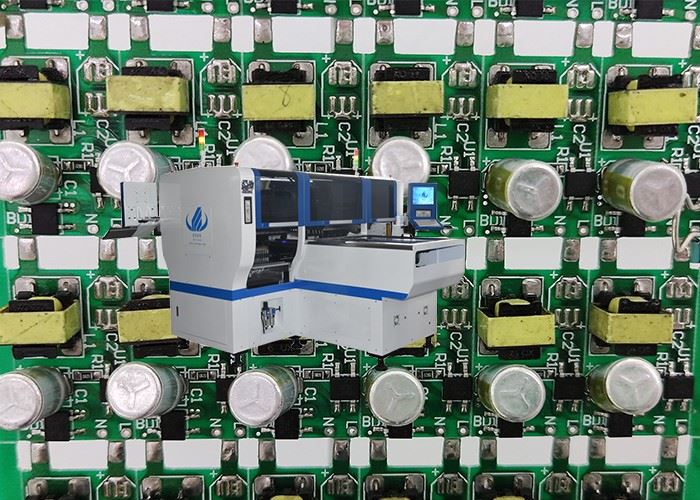

LED PCB Ua Mounting Ua Tshuab
HT-E8S yog nruab nrab ceev multi-functional xaiv thiab qhov chaw tshuab. Rau kev xaiv ceev dua thiab qhov chaw tshuab peb muaj HT-E8D. Los ntawm lub tshuab dimension, HT-E8D yog loj dua HT-E8S, tab sis qhov txawv tshaj plaws ntawm HT-E8S thiab HT-E8S yog ob lub taub hau mounting thaum HT-E8S tsuas yog ib qho.
Muaj nuj nqi
LED PCB ua mounting ua tshuab
Parameter
Qauv | HT-E8D-600 |
Dimension | |
Ntev | 1950 hli |
Dav | 2250 hli |
Qhov siab | 1650 hli |
Qhov hnyav tag nrho | 2200 Kg |
PCB | |
PCB Ntev Dav | Max: 600 * 300mm Min: 100 * 100mm |
PCB Thickness | 0 5-5mm |
PCB Clamping | Adjustable siab pneumatic |
Mounting hom | Pab pawg xaiv thiab cais qhov chaw \ cais xaiv thiab cais qhov chaw |
Vision System | |
No. Lub Koob Yees Duab | 4 teeb lub koob yees duab imported |
Lub zeem muag rau kev txheeb xyuas lub davhlau, MARK kho | |
Mounting Precision | ± 0.04mm |
Mounting Qhov siab | <15mm (Automatic Changing) |
Mounting Ceev | 90 000 CPH |
Cheebtsam | LED, capacitors, resistors, IC, zoo li tus Cheebtsam, thiab lwm yam. |
Cheebtsam Chaw | 0.2 hli |
No. of Feeders Station | 48 pcs |
No. ntawm nozzles | 24 Pcs |
Hwj chim | 380AC 50HZ |
X, Y, Z Axis Tsav txoj kev | High-end magnetic linear motor ntxiv rau Servo lub cev muaj zog |
Txoj kev pub mis | Electric feeder nrog ob lub cev muaj zog |
EXihibition
Peb lub tuam txhab koom nrog ntau qhov kev nthuav qhia hauv tsev thiab txawv teb chaws txhua xyoo,
Koj yuav pom ETON lub rooj muag khoom hauv qee qhov chaw ua yeeb yam loj hauv Suav teb, suav nrog cov rooj nthuav qhia loj hauv Shenzhen, Guangzhou, Chongqing, Shanghai thiab lwm qhov chaw.
Kev nthuav qhia txawv teb chaws suav nrog kev nthuav tawm hauv ntau dua 20 lub teb chaws suav nrog Mumbai, Delhi, Egypt, Qaib ntxhw, thiab Nyab Laj.
FAQ
Q: Koj hnub xa khoom yog dab tsi?
Hnub xa khoom yog li 20 hnub tom qab them tag nrho.
Q: Koj cov khoom ntim li cas
Q: Koj cov khoom ntim li cas?
A: Txhua lub tshuab tau ntim nrog lub tshuab nqus tsev thiab cov ntoo ntim zoo li ib qho hauv cov duab.
Q: Dab tsi yog qhov lav ntawm cov tshuab?
A: Kev saib xyuas: 1 xyoo tag nrho lub tshuab, txhua qhov chaw yuav tsum tau kho lossis hloov yuav dawb. Peb yuav ua lub luag haujlwm ntawm cov tshuab los ntawm A txog Z.
